API 7K Rotary and Drilling Rubber Heat Resistant Hose

FOB Reference Price:Get Latest Price
US $477-5,237 / Set | 1 Set/Sets welcome to contact us for more details (Min. Order)
Supply Ability:
250 Set/Sets per Year welcome to visit our factory
Port:
TIANJIN
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Orientflex
Model Number:
RVH
Length:
20M , 50M
Size:
1-1/2"-4"
Reinforcement:
High strength polyester plus helix wire
Working pressure:
11Mpa-70Mpa
Class:
Grade A,B,C,D,E,F
Fitting:
Hammer Unions,API Male thread,Flanges
Atachment:
Safety Clamp & Chain
Standard:
API Spec 7k
Color:
Black
Material:
HNBR rubber
Packaging & Delivery
Packaging Details
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Delivery Time
30 days after payment
Product Description

API 7K Rotary and Drilling Rubber Heat Resistant Hose

kelly hose

5,000psi W.P. – 10,000 psi Test-12,500 psi Minimum Burst

Certification/Standards:

API Spec 7K-ISO 14693-NACE MR0175

Recommended For:

Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill  platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.

Tube:

HNBR rubber. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.

Reinforcement:

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.

Cover:

Modified Nitrile. Black. Specially designed Ultra abrasion cover is resistant to abrasion, corrosion, cutting, gouging, oil and weather.

Couplings:

Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.



Temperature:

-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:

Accessories such as safety clamps, hose lift eyes and stainless steel armor are available upon request.
Test:

Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.



Hose IDHose O.D.Working PressureMin. Burst PressureMin. Bend Radius
(In.)(mm)(In.)(mm)(psi)(MPa)(psi)(MPa)(In.)(mm)
2 1/263.54.14105.45000351250087.536914
376.24.61117.15000351250087.5481219
3 1/288.95.25133.45000351250087.5541372
4101.65.61141.75000351250087.5541372

Product show:



Certifications

Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.

For More Certifications And about ORIENT Please See The Below Link:

http://orientrubber.en.alibaba.com/custom_page_1/About_Orient.html

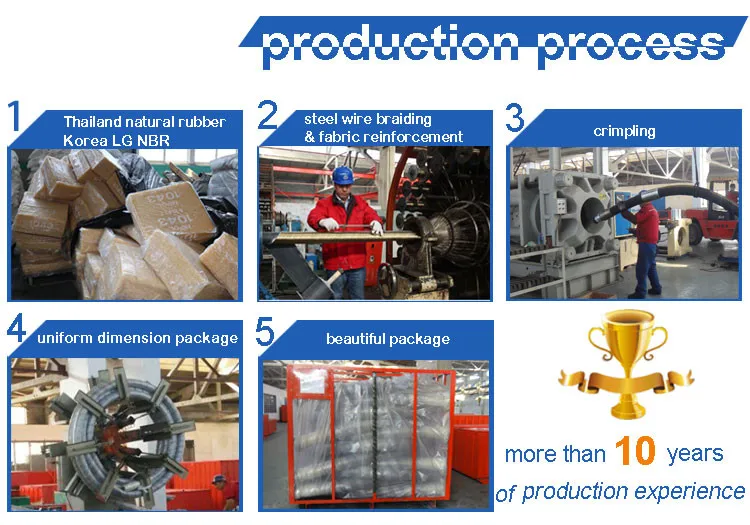

Production process

Advantages:

• Germany Lanxess HNBR as raw material.

  20% H2S and 80% oil based mud.

  Survive the extreme oilfield application requirements and has been no quality complaint for 5 years.

• Stainless steel 316L used as armored jacket

Factory Workshop:

• SEJIN MACHINE from Korea.

   Suspension difference<70 MM, and the international standard is 120 MM.

• Mitsubishi electric control braiding machine.

   High accuracy data collection, real-time braiding angle monitoring and correction



Pressure test

Test:  Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.

Strong quality control team, advanced laboratory.

Before the mass production, test each batch of raw material.

After the production, test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.



Packing

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
