38mm pvc steel wire spring hose/pvc suction hose
- Place of Origin:
-
Shandong, China (Mainland)
- Brand Name:
-
Orientflex
- Model Number:
-
PVC steel wire hose
- Material:
-
PVC
- Specification:
-
1/4"~8"
- Length:
-
30m/50m/100m
- Thickness:
-
2.5mm~12mm
- Standard:
-
ISO
- Product name:
-
PVC steel wire hose
- Color:
-
transparent etc
- Characteristics:
-
flexible, high pressure
- Application:
-
conveying liquid
- Sample:
-
Available
- OEM:
-
Accept
- W.P:
-
3~11BAR
- B.P:
-
10~33BAR
- Certification:
-
ISO9001
- Option:
-
food grade
- Supply Ability:
- 500000 Meter/Meters per Month Welcome to contact us for more detail informatioin
- Packaging Details
- Common export packing or we can pack the hose according to client request.
- Port
- Qingdao
- Lead Time :
- 30 days after payment
38mm PVC steel wire spring hose/PVC suction hose
38mm PVC steel wire spring hose/PVC suction hose
Application:The hose is widely used for suction and discharge of water,oil and powder in the factories,agriculture,engineering,foodstuffs and sanitation lines,the hose used for foodstuffs is made of special material.It is non-toxic,light,without odor and transparent.
The hose can be used for conveying milk,beverage,distilled liquor,beer,jam and other foods.We can also insert the cooper wire into hose.This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.
Characteristics:

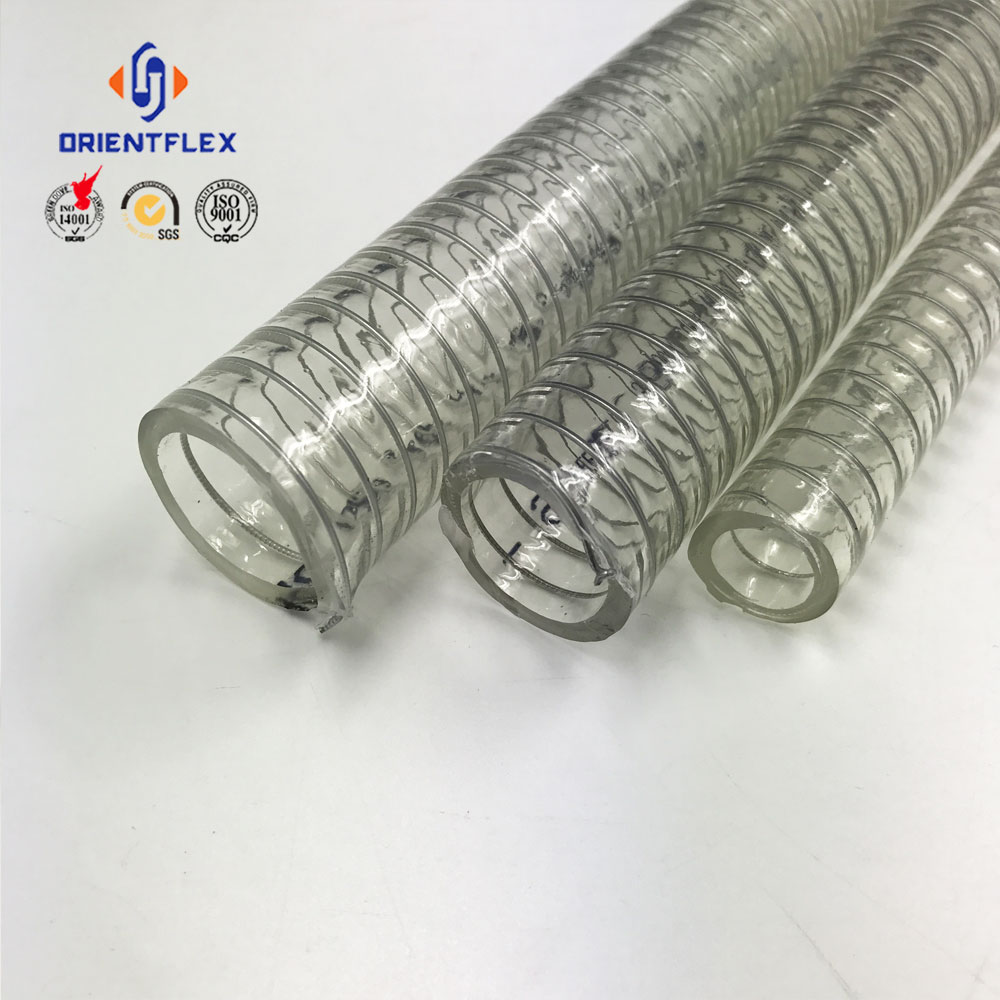

This hose,with steel wire screwing inlaid in the hose,is light,transparent,with small bending radius.
It has good adaptability to hard weather conditions and vacuum pressure.
With colorful symbol lines on the surface of the hose,it can be beautiful.
Temperature range:-10℃ to +70℃
Specification
Item Code | I.D | O.D | Vacuum | W.P. | B.P. | Length | Weight | Volume | ||||
inch | mm | mm | psi | bar | psi | bar | psi | bar | m/roll | kg/roll | m3 | |
PSWH-06 | 1/4" | 6 | 11 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | 10 | 0.028 |
PSWH-08 | 5/16" | 8 | 14 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | 15.5 | 0.039 |
PSWH-10 | 3/8" | 9 | 14 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | 13.5 | 0.027 |
10 | 15 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | 14.7 | 0.041 | ||
9 | 15 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | 17 | 0.029 | ||
10 | 16 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | 18.4 | 0.045 | ||
PSWH-12 | 1/2" | 12 | 17 | -15 | -1 | 131 | 9 | 435 | 30 | 100 | 17.1 | 0.044 |
12 | 18 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | 21.2 | 0.049 | ||
PSWH-16 | 5/8" | 15 | 22 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | 30.5 | 0.074 |
15 | 21 | -15 | -1 | 131 | 9 | 435 | 30 | 100 | 25.4 | 0.074 | ||
16 | 20 | -15 | -1 | 116 | 8 | 290 | 20 | 100 | 17 | 0.061 | ||
16 | 23 | -15 | -1 | 131 | 9 | 435 | 30 | 100 | 32.1 | 0.063 | ||
PSWH-20 | 3/4" | 19 | 26 | -15 | -1 | 145 | 10 | 435 | 30 | 50 | 18.55 | 0.052 |
19 | 25.5 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | 17.05 | 0.050 | ||
20 | 26 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | 16.25 | 0.050 | ||
20 | 24.5 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | 11.8 | 0.050 | ||
PSWH-22 | 7/8" | 22 | 30 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | 24.5 | 0.065 |
22 | 27 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | 14.4 | 0.058 | ||
PSWH-25 | 1" | 25 | 33 | -15 | -1 | 145 | 10 | 363 | 25 | 50 | 27.3 | 0.085 |
25 | 29 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | 12.7 | 0.065 | ||
25 | 30 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | 16.2 | 0.069 | ||
25 | 32 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | 23.5 | 0.078 | ||
PSWH-32 | 1-1/4" | 32 | 41 | -15 | -1 | 102 | 7 | 290 | 20 | 40 | 30.96 | 0.106 |
32 | 36 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | 16 | 0.124 | ||
32 | 38.6 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | 27.45 | 0.133 | ||
32 | 41 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | 38.7 | 0.152 | ||
32 | 41.6 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | 44.1 | 0.130 | ||
PSWH-38 | 1-1/2" | 38 | 48 | -15 | -1 | 87 | 6 | 261 | 18 | 40 | 40.52 | 0.154 |
38 | 42.8 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 22.85 | 0.154 | ||
38 | 44 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 28.95 | 0.161 | ||
38 | 44.6 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 32.1 | 0.169 | ||
38 | 45.5 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | 36.85 | 0.173 | ||
38 | 46.4 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | 41.75 | 0.184 | ||
PSWH-45 | 1-3/4" | 45 | 56 | -15 | -1 | 87 | 6 | 247 | 17 | 40 | 52.32 | 0.190 |
45 | 50 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 27.95 | 0.198 | ||
45 | 52 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 40 | 0.211 | ||
45 | 53 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | 46.15 | 0.229 | ||
PSWH-48 | 1-7/8" | 48 | 59 | -15 | -1 | 73 | 5 | 232 | 16 | 40 | 59.12 | 0.208 |
48 | 54.6 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | 42.55 | 0.234 | ||
48 | 56.4 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | 55.05 | 0.262 | ||
48 | 58 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | 66.55 | 0.267 | ||
PSWH-50 | 2" | 50 | 62 | -15 | -1 | 73 | 5 | 232 | 16 | 40 | 67.52 | 0.276 |
50 | 55.6 | -15 | -1 | 73 | 5 | 145 | 10 | 50 | 37.15 | 0.258 | ||
50 | 57.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | 48.45 | 0.268 | ||
50 | 58.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | 55.7 | 0.273 | ||
50 | 60 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | 69.1 | 0.289 | ||
PSWH-58 | 2-5/46" | 58 | 70 | -15 | -1 | 73 | 5 | 218 | 15 | 40 | 72.36 | 0.350 |
PSWH-64 | 2-1/2" | 63 | 80 | -15 | -1 | 73 | 5 | 203 | 14 | 30 | 94.47 | 0.330 |
64 | 72.3 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 58.6 | 0.351 | ||
64 | 75 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 79.2 | 0.370 | ||
64 | 76 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 87.04 | 0.370 | ||
64 | 77 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 94.96 | 0.389 | ||
PSWH-75 | 3" | 75 | 91 | -15 | -1 | 73 | 5 | 189 | 13 | 30 | 103.2 | 0.436 |
75 | 84 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 74.16 | 0.504 | ||
75 | 85 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 82.88 | 0.504 | ||
75 | 87 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 100.72 | 0.681 | ||
75 | 89 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | 118.96 | 0.715 | ||
PSWH-90 | 3-1/2" | 90 | 108 | -15 | -1 | 58 | 4 | 174 | 12 | 20 | 95.12 | 0.640 |
PSWH-100 | 4" | 100 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 20 | 104.74 | 0.505 |
102 | 112 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | 175.68 | 0.667 | ||
102 | 114 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | 103.77 | 0.676 | ||
102 | 115 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | 112.95 | 0.706 | ||
102 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | 140.91 | 0.716 | ||
PSWH-110 | 4-3/8" | 110 | 123 | -15 | -1 | 44 | 3 | 145 | 10 | 20 | 80.84 | 0.810 |
PSWH-117 | 4-5/8" | 117 | 133 | -15 | -1 | 44 | 3 | 145 | 10 | 20 | 109.9 | 1.024 |
PSWH-127 | 5" | 127 | 143 | -15 | -1 | 44 | 3 | 145 | 10 | 20 | 118.7 | 1.243 |
PSWH-140 | 5-1/2" | 140 | 156 | -15 | -1 | 44 | 3 | 145 | 10 | 10 | 65.06 | 0.627 |
PSWH-152 | 6" | 152 | 170 | -15 | -1 | 44 | 3 | 145 | 10 | 10 | 81.9 | 0.765 |
PSWH-160 | 6-5/16" | 160 | 176 | -15 | -1 | 44 | 3 | 145 | 10 | 10 | 75.96 | 0.922 |
PSWH-180 | 7" | 180 | 196 | -15 | -1 | 44 | 3 | 145 | 10 | 10 | 85.01 | 1.156 |
PSWH-200 | 8" | 200 | 224 | -15 | -1 | 44 | 3 | 145 | 10 | 10 | 143.79 | 1.426 |
Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strongR & D team,
including 16 experienced engineers.
Advantage:
1).Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3).Strict quality inspection,Strong R&D team
4).Environmental friendly without pollution
5).10 years manufacturing experience,strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20people, with more than five years experience in foreign
trade, to provide professional services for customer.
ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.
ORIENTFLEX has strong quality control team,we set upadvanced laboratory.Before mass production,we test each batch raw material.After production,we test each hose toguarantee 100% qualification.
ORIENTFLEX has three warehouses.
100% virgin PVC materials,Non-toxic,Non smell.
High tensile polyester yarn.Good quality material make light weight,good flexibility,easy handling.
Soft and flexible.Anti abrasion,Anti-corrosion,Anti-aging
Our factory introduce advanced teconology and equipment to make the bets quality PVC steel wire hose. We have much experience of exporting and we produce the best quality PVC steel wirehose.
Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing isavailable according to customers' requirements.
Certifications:All Product Meet The Standard OfISO.
For More Certifications And about ORIENT Please See The Below Link:
http://orientrubber.en.alibaba.com/custom_page_1/About_Orient.html
Market &Trade show:Our product has exported to over 30 countries,including the United States, Britain, Brazil,Russia and so on. Andwe participate in overseas exhibitions every year.
Skype:orientrubberWhatsapp:008613930110983
TEL:+86-311-68008301Fax: +86-311-68008302
Mobilephone:008613930110983
Email:orient888@orientrubber.com
Add:No298 Zhonghua North Street, Shijiazhuang, Hebei, China
